Near miss due to dropped cable pipe

What happened - icon

What happened?

A technician was climbing down from the nacelle.

On the way down he stepped on the cable protection tubes which were stored and secured on the ladder.

The cable protection tubes were mounted with cable ties and two of them fell along the ladder from the mid top tower (cable loop platform) and down to the next level, where one of the installation technicians was working.

No injury was reported, however a nearby technician could have been seriously injured.

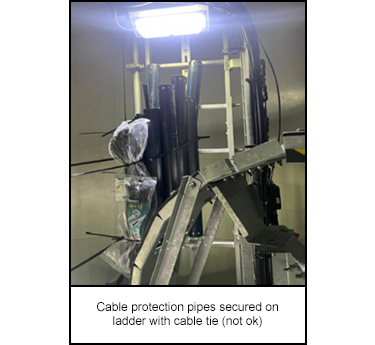

Cable protection pipes secured on ladder with cable tie (not ok)
What happened - icon

Why did it happen?

Cable pipes were not secured as per the procedure.

Work instruction referring to securing the cable protection pipe on the ground was not followed.

Lack of onsite assessment of potential dropped object.

Technicians already climbed up/down with the obstacle on the ladder (cable protection pipe) and they did not immediately fix or remove them.

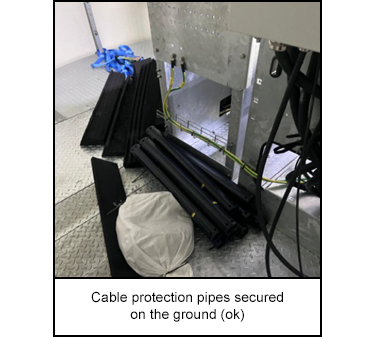

Cable protection pipes secured on the ground (ok)
What happened - icon

What did they learn?

Ensure the work team is familiar with the work instruction and performs a last-minute risk assessment before starting a new task.

Perform regular drop surveys on-site focusing on objects/material stored at height with a potential to fall and injure people:

  • If possible, remove objects stored at height; and
  • If not possible, ensure objects are securely attached with two distinct fastening methods.

Raise workers’ awareness on dropped object hazards.

Promote reporting of unsafe situations and conditions.

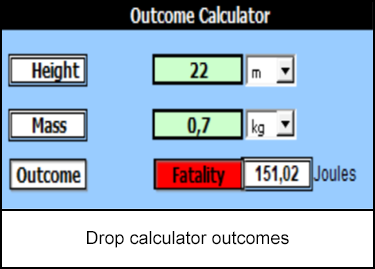

Drop calculator outcomes
What happened - icon

Ask yourself or your crew

How can something like this happen here (e.g. on our site)?

What safety measures (i.e. procedures, controls/barriers) do we have in place to mitigate the risk?

How do we know the risk controls/barriers are working?

What improvements or changes should we make to the procedures, controls/barriers, or the way we work?

  • What happened?

    A technician was climbing down from the nacelle.

    On the way down he stepped on the cable protection tubes which were stored and secured on the ladder.

    The cable protection tubes were mounted with cable ties and two of them fell along the ladder from the mid top tower (cable loop platform) and down to the next level, where one of the installation technicians was working.

    No injury was reported, however a nearby technician could have been seriously injured.

    Cable protection pipes secured on ladder with cable tie (not ok)
  • Why did it happen?

    Cable pipes were not secured as per the procedure.

    Work instruction referring to securing the cable protection pipe on the ground was not followed.

    Lack of onsite assessment of potential dropped object.

    Technicians already climbed up/down with the obstacle on the ladder (cable protection pipe) and they did not immediately fix or remove them.

    Cable protection pipes secured on the ground (ok)
  • What did they learn?

    Ensure the work team is familiar with the work instruction and performs a last-minute risk assessment before starting a new task.

    Perform regular drop surveys on-site focusing on objects/material stored at height with a potential to fall and injure people:

    • If possible, remove objects stored at height; and
    • If not possible, ensure objects are securely attached with two distinct fastening methods.

    Raise workers’ awareness on dropped object hazards.

    Promote reporting of unsafe situations and conditions.

    Drop calculator outcomes
  • Ask yourself or your crew

    How can something like this happen here (e.g. on our site)?

    What safety measures (i.e. procedures, controls/barriers) do we have in place to mitigate the risk?

    How do we know the risk controls/barriers are working?

    What improvements or changes should we make to the procedures, controls/barriers, or the way we work?

    Ask your crew - icon
Published on 14/03/25 560 Views

While climbing down from the nacelle, a technician stepped on cable protection tubes secured on the ladder, causing two tubes to fall near another technician working below. No injuries occurred, but there was a risk of serious injury.
